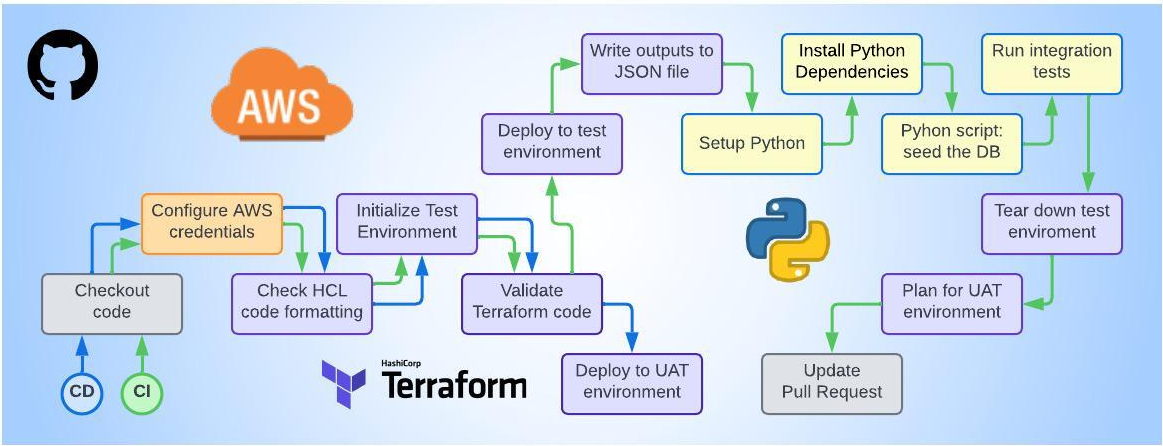

pipeline flow chart

Basic Continuous Integraton Pipeline

source code

With a serverless application as the subject of deployment, this project demonstrates a basic continuous integraton pipeline using GitHub Actions and Terraform. Features include automation of Terraform deployment, integration tests, and output written to the pull request.

Tech Stack

  • GitHub Actions
  • Terraform
  • Python / pytest
  • Amazon API Gateway with OpenAPI and API Gateway extentions
  • Amazon DynamoDB

The Application Under Deployment

The application itself in this project is simple, so that the CI pipeline is the focus. To that end, the application is a serverless application composed of API Gateway and DynamoDB which are integrated with OpenAPI and API Gateway extensions. This provides the bare minimum of CRUD endpoints for integration tests to demonstrate a GitHub Actions workflow.

Overview of Pipeline Steps

Continuous Integration Continous Deployment
Check out the code Checkout the code
Configure AWS credentials Configure AWS credentials
Terraform: check the HCL code formatting Terraform: check the HCL code formatting
Terraform: initialize the test environment Terraform: initialize the UAT environment
Terraform: validate the HCL code Terraform: validate the HCL code
Terraform: deploy to test environment —
Terraform: write outputs to json file —
Setup Python —
Install Python dependencies —
Run Python script to seed the database —
Run integration tests (pytest) —
Terraform: tear down the test environment —
Terraform: create plan for UAT environment —
Update pull request with test results and plan —
— Terraform: deploy to UAT environment

Security Hardening with AWS IAM and OpenID Connect

Rather than implement security the quick-and-easy way by adding the AWS access keys as secrets in GitHub, this project demonstrates the more robust approach of configuring an OIDC approach with AWS IAM:

Configure an OIDC provider in AWS IAM. Configure a Role in AWS IAM and add a trust relationship policy that allows access for the GitHub project:

{
    "Version": "2012-10-17",
        "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "Federated": "arn:aws:iam::<account number>:oidc-provider/token.actions.githubusercontent.com"
            },
            "Action": "sts:AssumeRoleWithWebIdentity",
            "Condition": {
                "StringEquals": {
                    "token.actions.githubusercontent.com:aud": "sts.amazonaws.com"
                },
                "StringLike": {
                    "token.actions.githubusercontent.com:sub": [
                        "repo:lukewyman/actions-and-terraform-pipeline:*"
                    ]
                }
            }
        }
    ]
}

Add permissions to the GitHub Action workflow to access the OIDC token:

jobs:
test_and_deploy:
    name: "Test & Deploy to UAT"
    runs-on: ubuntu-22.04
    defaults:
    run:
        working-directory: app
    permissions:
    pull-requests: write
    id-token: write
    contents: read

Add a step to the job that uses the aws-credentials/configure-aws-credentials action and configure the step to use the role:

- name: Configure AWS Credentials
        uses: aws-actions/configure-aws-credentials@v2
        with:
        role-to-assume: arn:aws:iam::<account number>:role/github-actions
        aws-region: us-west-2

Integration Testing
